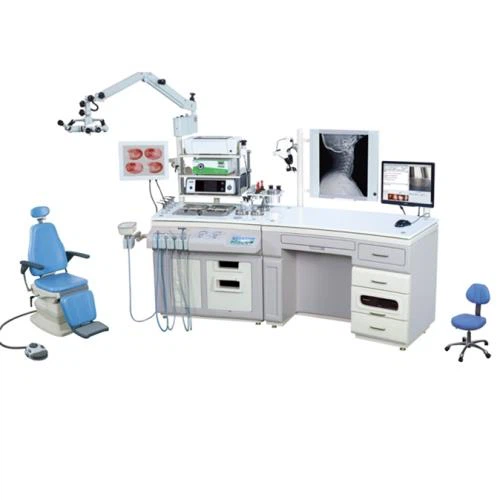

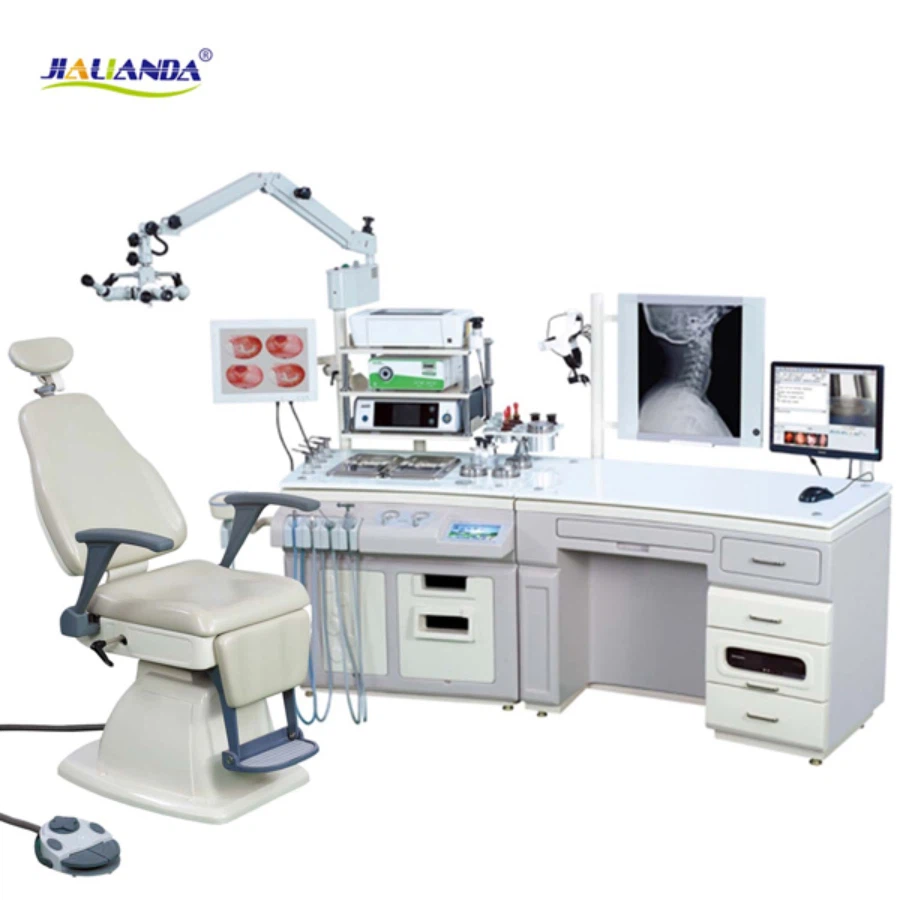

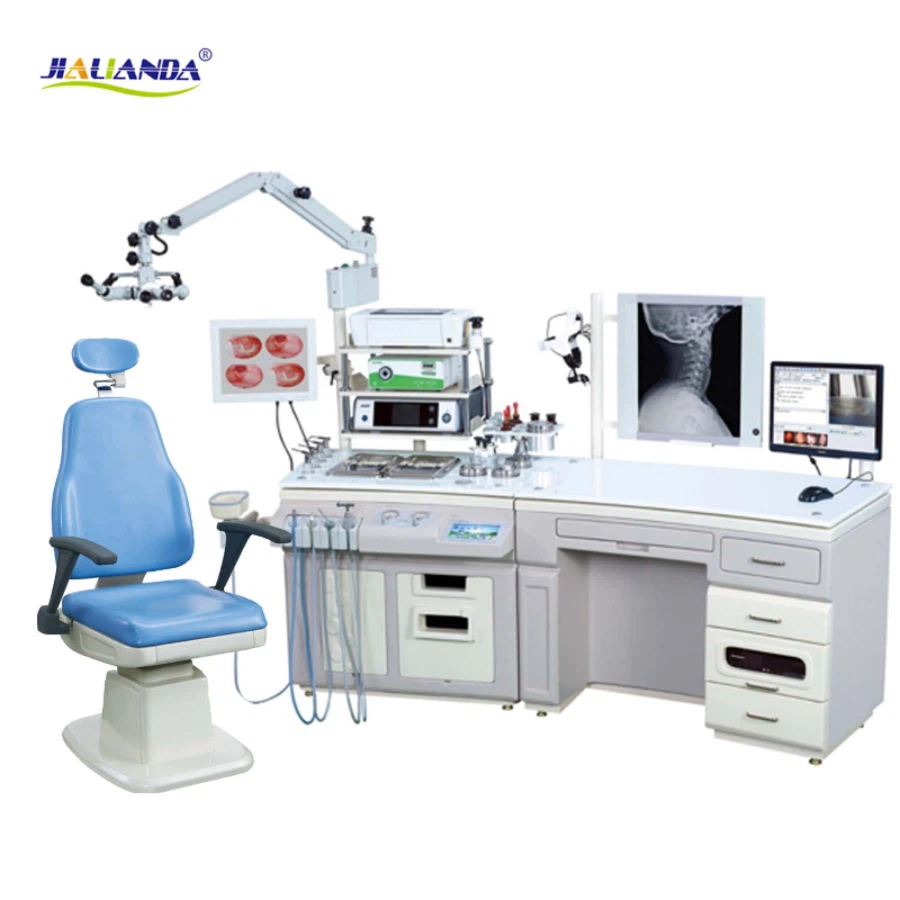

ENT Workstation With All Options

1 .ENT WORKSTATION : -Compressed air unit of our ENT workstation Automatic switching complete with fine regulation handpiece,(0.1–4 bar) adjustable, pressure gauge, and contain a 1.5 ltr stainless steel air tank for backup air, Separate from compressor unit and silently motorized , 3 spray...

1 .ENT WORKSTATION :

-Compressed air unit of our ENT workstation

Automatic switching

complete with fine regulation handpiece,(0.1–4 bar) adjustable, pressure gauge,

and contain a 1.5 ltr stainless steel air tank for backup air, Separate from compressor unit and silently motorized ,

3 spray bottles

- Suction unit of our ENT workstation

with smooth-running vacuum pump,

Automatic switching unit of our ENT workstation

1500ml/min, with vacuum gauge, secretion bottle 2.5 l , with alarming system.

Mirror reheating unit of our ENT workstation:

automatically shut down after a cycle of 10 seconds

Instrument surface with removable trays,

Storage drawer, keyboard drawer and compartment for computer case

White marble writing surface

Water Irrigation system of our ENT workstation: 38°C warm water rinsing device (5 – 800 ml /min flow) with water filter, ear rinsing funnel on swival arm and with all round flush, kidney shaped, automatically switched on/off when Handpiece is taken out and back

_ One cold light source, inbuilt

3 quivers for rigid endoscope storage and disinfection

_ with concealed sockets for additional equipment

_ Microscope holder with electricity supply

_ Built-in SS trays for used instruments

_ Built-in waste bin for medical wastes, syringes, etc.

Mobile on heavy duty castors

Microscope intergrated in our ENT workstation:

With 5 step magnification changer, Straight tube f=160mm, 12.5x wide field eyepiece, objective lens f=350mm

Examination chair & Physician chair: Each 1

Examination chair: Lifting range 15 cm, lifting mechanism motor, seat height 53–68cm, Rotation 180°,Armrests, back rest and leg rest can be reclined to horizontal position .

Doctor chair adjustable seat height , 360° rotation, steel parts chrome plated, mobile on 5 castors, synthetic leather cover

Camera system-1 No:

Full HD resolution (1920x1200)

LCD screen

2 LAN ports for connecting to printer and practice's IT system

Video output: HDMI, RGB, S-VIDEO

Monitor:

size 15 inch , resolution 1920x1200

LED light source: 1 No's with fiber optic light cable

Endoscope: Each 1

Otoscope: Φ4;90mm;0°

Sinuscope: Φ4;175mm;30°
