Dental Operating Microscope Surgical Microscope

Dental Operating Microscope Surgical Microscope

JLD-360 series sugical operation microscope using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery

Chat Now
Product Introduction

JLD-360 Dental Operating Microscope Surgical Microscope


Feature.
Microscope employs hanging arm design, this helps operator by automatically adjusting the exposure, ease and fatigue is minimized after prolong use.
Five-step magnification for main microscope, the optical system assures more clarity image.
Adopts cool illumination, to prevent tissue distortion. Light conditions are provided by LED bulb.
Adopts spring balance design, the arm can be moved random. A special switch has been fitted into the Second arm, the bulb will keep on when it is working in normal rang, at the limited position, the bulb will turn off by automatically.



Specification of ent Microscope (LED light,60Watt):

Magnification: 5-step magnification changer 0.4X,0.6X,1.0X,1.6X,2.5X.
Binoculars: 45° inclined binocular f'=170mm
Straight binocular f'=170mm
0-180°inclinable binocular f'=170mm
Eyepiece 12.5X,widefiled and adjustable eyecup
10X/16X/20X for options
Total magnification and visual field f'=250mm,12.5X eyepiece
45°binocular 3.4X 5.4X 8.5X 13.5X 21.2X 65mm 42mm 26mm 16mm 10mm
Focus Manual,with rang of 12mm
f'=200mm (with fine focus,option)
f'=250mm (with fine focus)
f'=300mm/350mm/400mm(option)
Illumination coaxial illumination by optical light -guide system
*Halogen 15V/150W, two bulbs, continuously light-intensity adjustment,50000Lux(f'=250mm)
*LED 60Watts, over 50000 hours life time 75000Lux(f'=300mm)90000Lux(f'=250mm)
*field of view 50mm (f'=250mm)*
Filter Green/yellow for Dental,or green/blue for ENT
Stand type and Gross weight Floor stand 125kg
Wall mount 80kg
Ceiling mount 95kg
Accessories Beam splitter 50/50 or 20/80
Adaptor for 1/3 video camera
Integrated beam splitter and adaptor
Video system:built-in 1/2 inch CCD camera with 540TVL or HDMI 1920*1080P,1/3 inch HD CMOS sensor




Detailed photos.

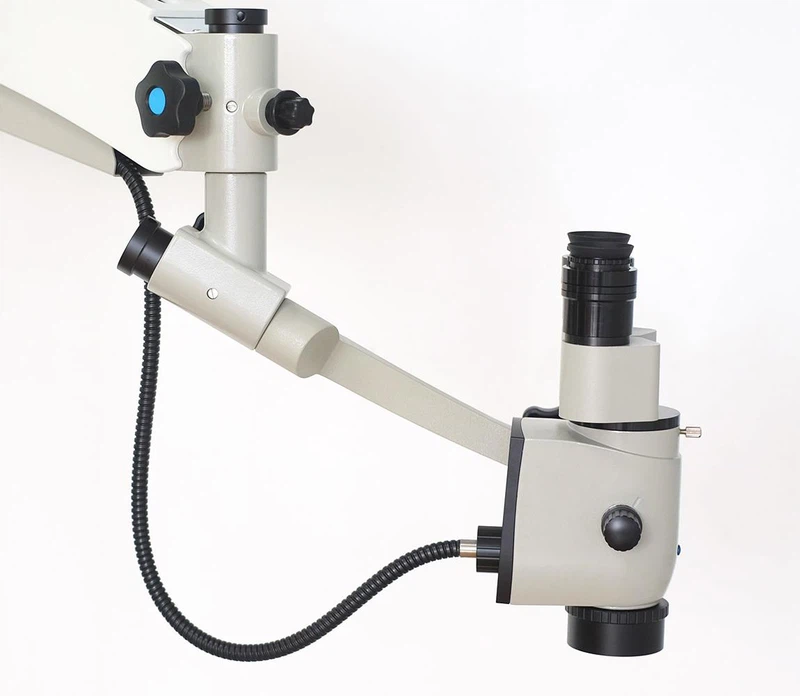

Main-02

Main-03

Main-04

Main-05

Main-07
